Description

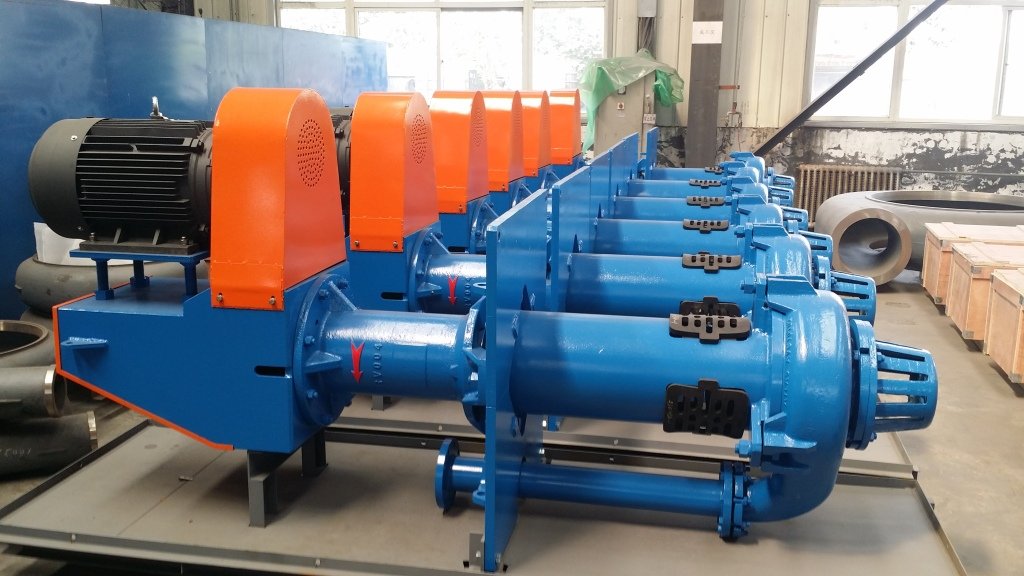

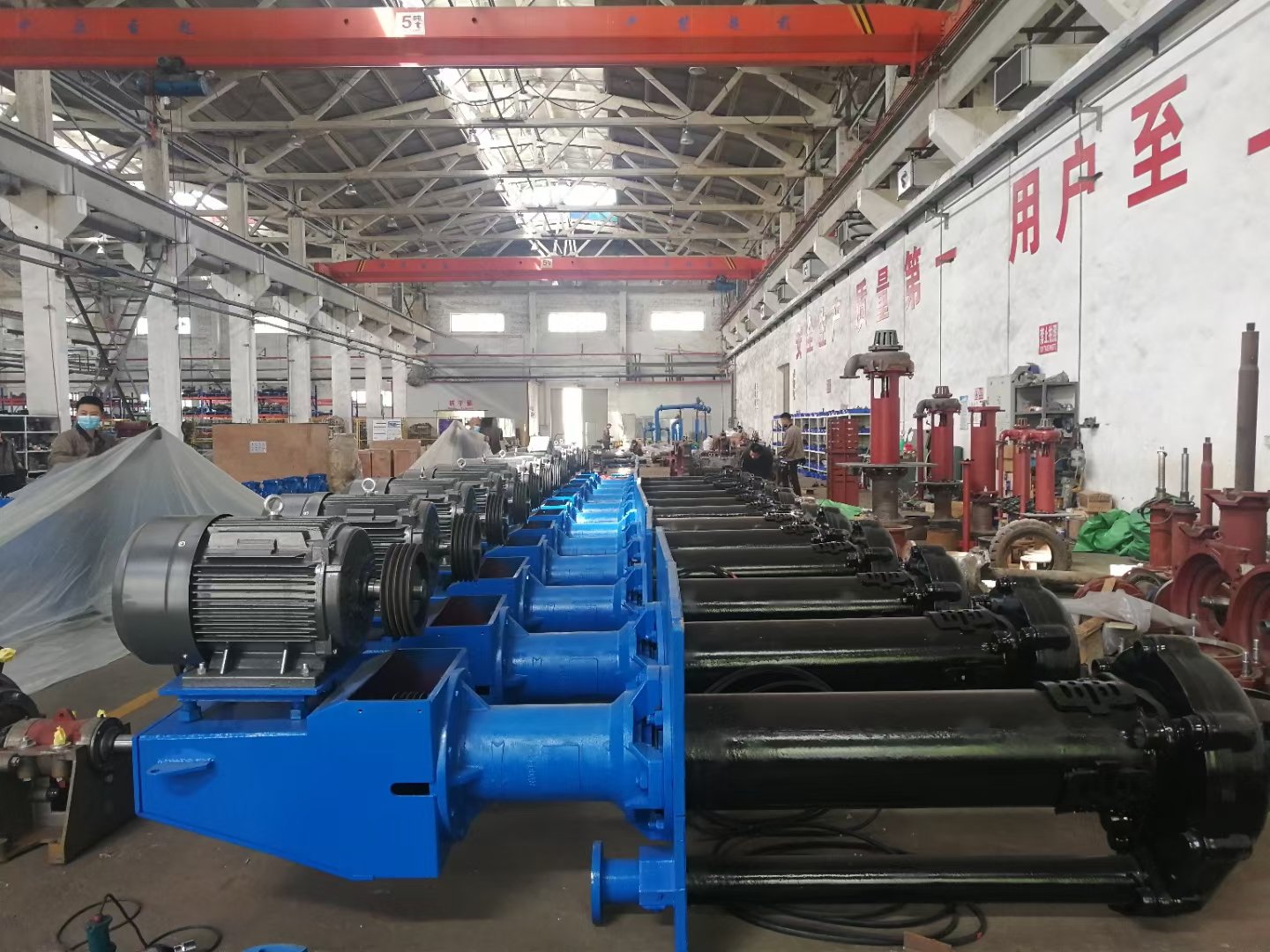

HDV/HDVR series sump slurry pump, vertical sump pump
Design&Feature
The HDV/HDVR heavy duty cantilever sump pumps are designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer.

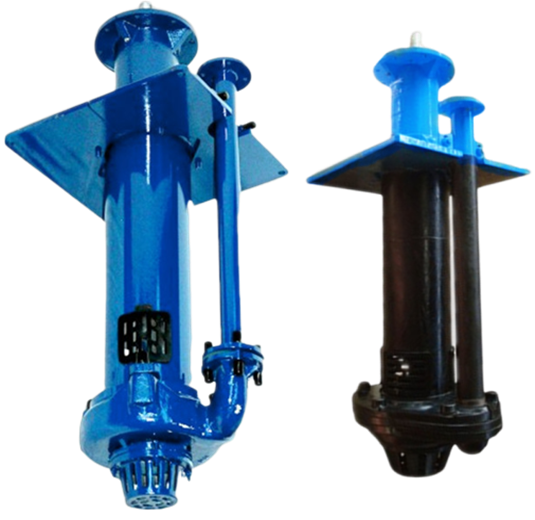

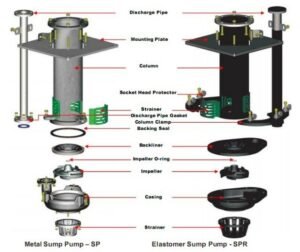

Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
The rugged HDSP/SPR Heavy Duty Sump Pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
- Minerals processing
- Coal preparation
- Chemical processing
- Effluent handling
- Sand and gravel
and almost every other tank, pit or hole-in-the-ground slurry handling situation.
KEY ADVANTAGES
- Fully cantilevered design
- No submerged bearings
- No shaft seal required
- Continuous or “snore” operation capability
- Large particle impellers available
- No gland water or packing required
- Abrasion and corrosion resistant material options
- Top and bottom suction draws slurry away from bearings
- Fully cantilevered design
- No submerged bearings
- No shaft seal required
- Continuous or “snore” operation capability
- Large particle impellers available
- No gland water or packing required
- Abrasion and corrosion resistant material options
- Top and bottom suction draws slurry away from bearings
Performance
The HDV/HDVR Heavy Duty Sump Pumps are available in various standard lengths to suit common sump depths, for very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 meters..
HDV(R) series Underground Pumps parameter:
| Model | Capacity | Head | Speed | Efficiency | Power | Diameter(mm) | |
| m3/h | m | r/min | % | kw | Impeller | Outlet | |
| 40PV-HDV(R) | 17-43.2 | 4-28.5 | 1000-2200 | 40 | 15 | 188 | 40 |
| 65QV-HDV(R) | 18-114 | 5-31.5 | 700-1500 | 60 | 30 | 280 | 65 |
| 100RV-HDV(R) | 54-289 | 5-36 | 500-1200 | 62 | 75 | 370 | 100 |
| 150SV-HDV(R) | 108-479 | 8.5-40 | 500-1000 | 52 | 110 | 450 | 150 |
| 200SV-HDV(R) | 189-891 | 6.5-37 | 400-850 | 64 | 110 | 520 | 200 |
| 250TV-HDV(R) | 261-1089 | 7-33.5 | 400-750 | 60 | 200 | 575 | 250 |
| 300TV-HDV(R) | 288-1267 | 6-33 | 350-700 | 50 | 200 | 610 |
300 |

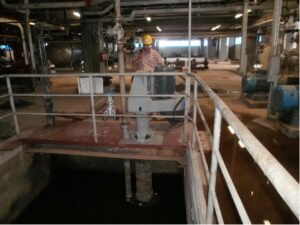

Hedunpumps 65QV-HDV Sump pump is used in Indonesia chemical factory

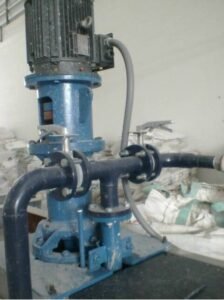

Hedunpumps 40PV-HDV sump pumps used in Thailand factory
