submersible sand pump

ZJQ mine flameproof submersible slag slurry electric pump is a new type of high efficiency anti-abrasion pump developed by our company. In the hydraulic design, structural design and wear-resistant materials used, the advantages of the same kind of products at home and abroad are comprehensively applied and innovated, with high efficiency and energy saving, small vibration, low noise, reliable operation, long service life, easy maintenance and other characteristics. Can be widely used in electric power, metallurgy, coal, building materials and other industries to transport slurry containing solid particles.

Category:

Description

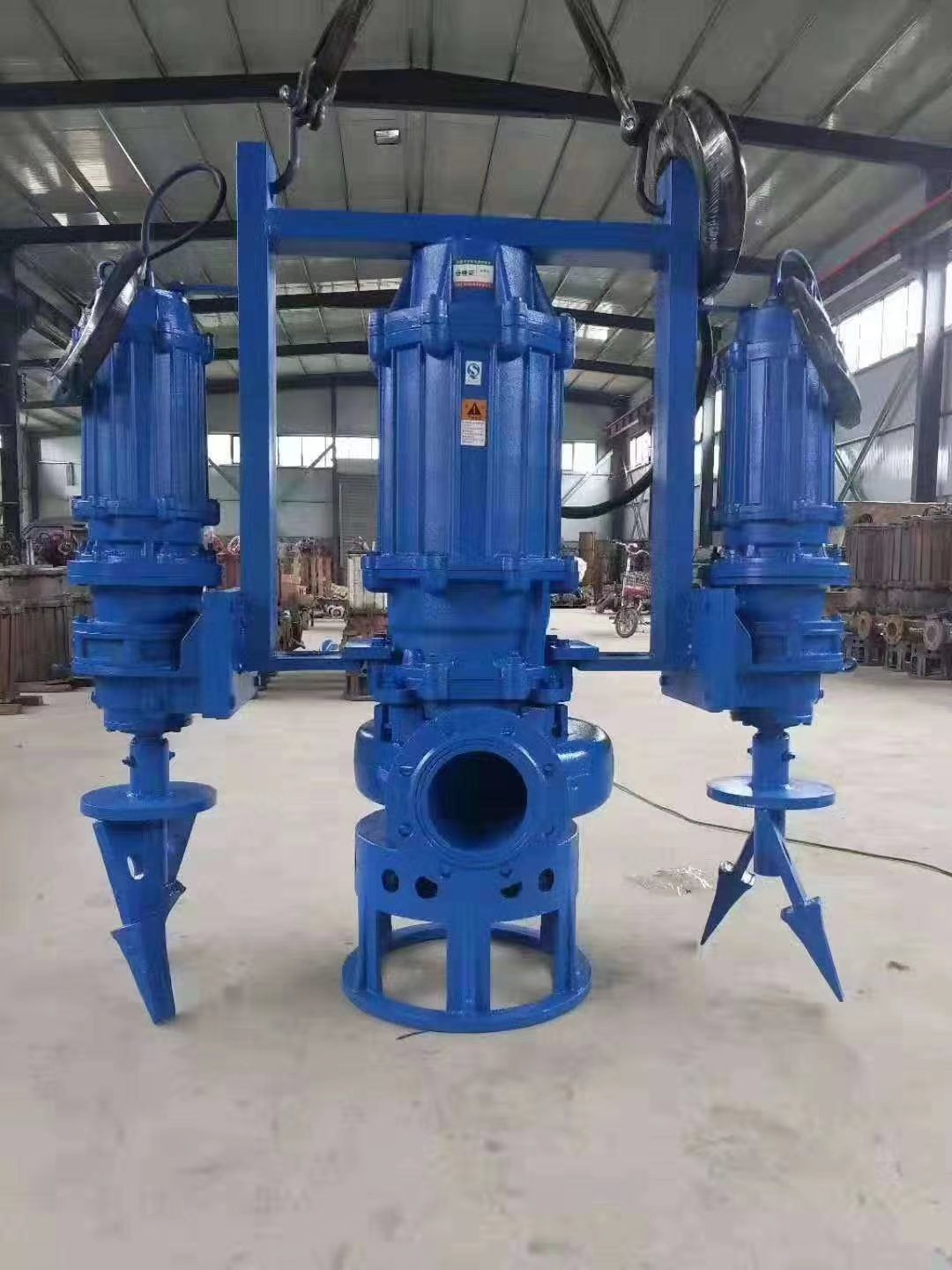

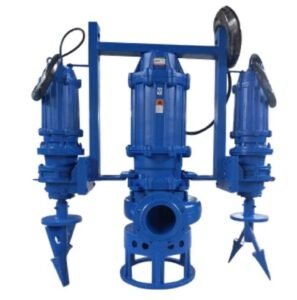

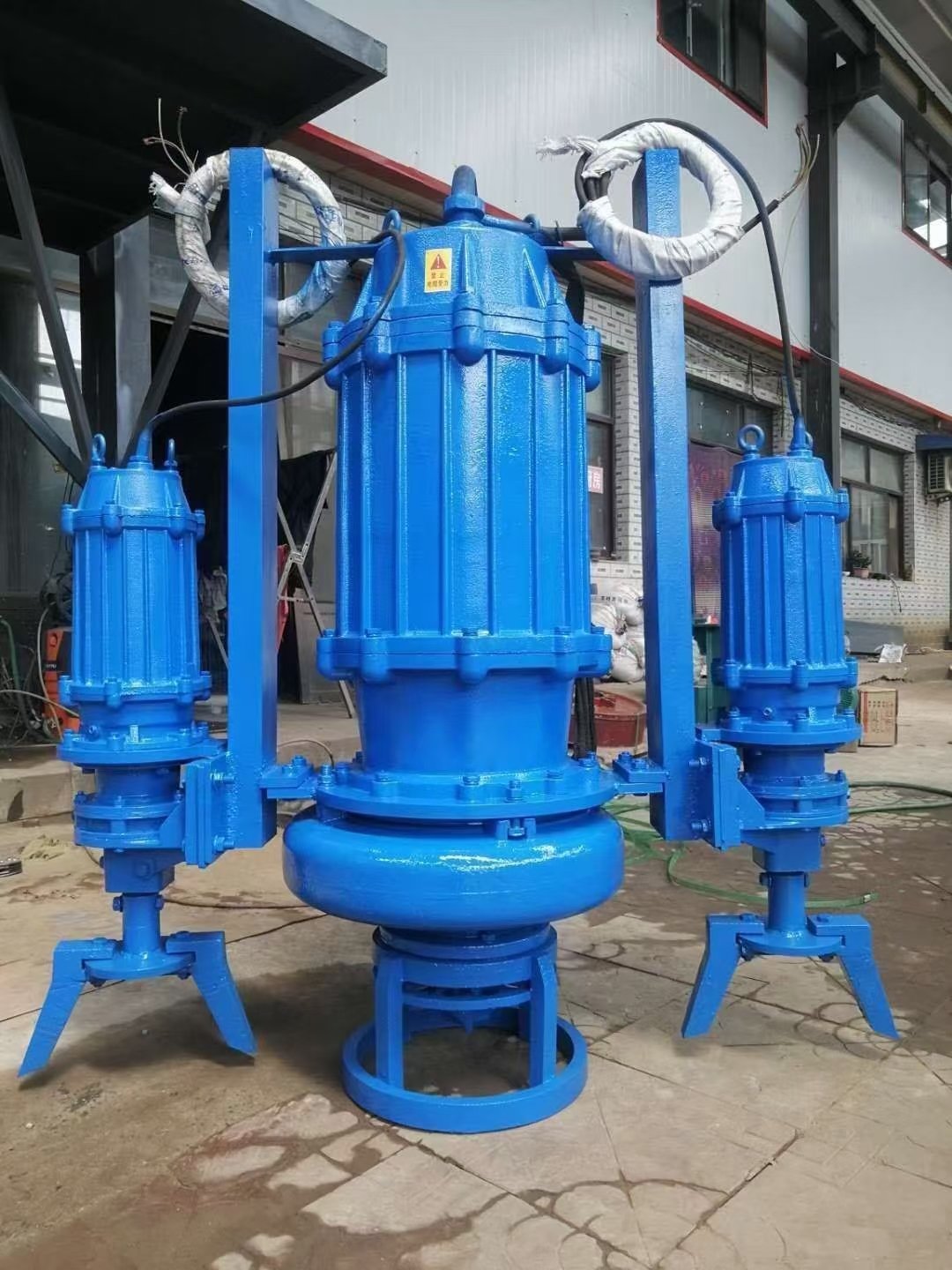

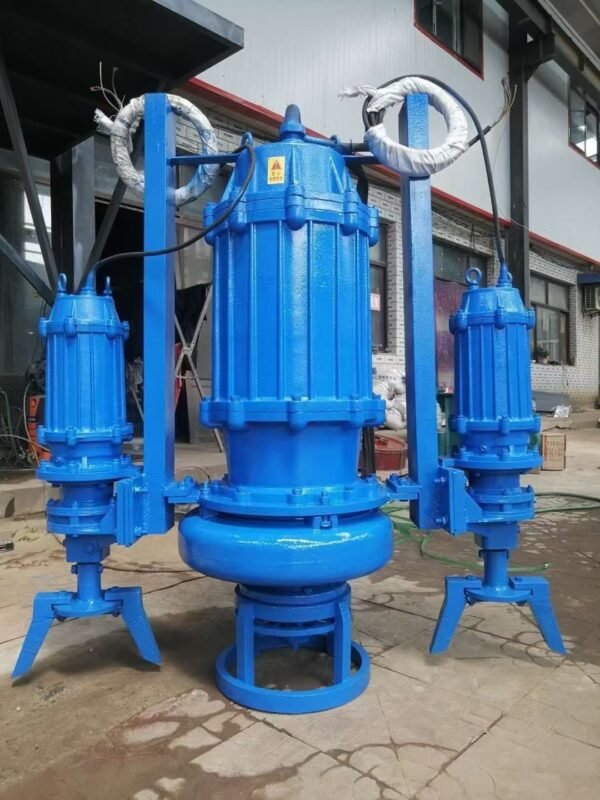

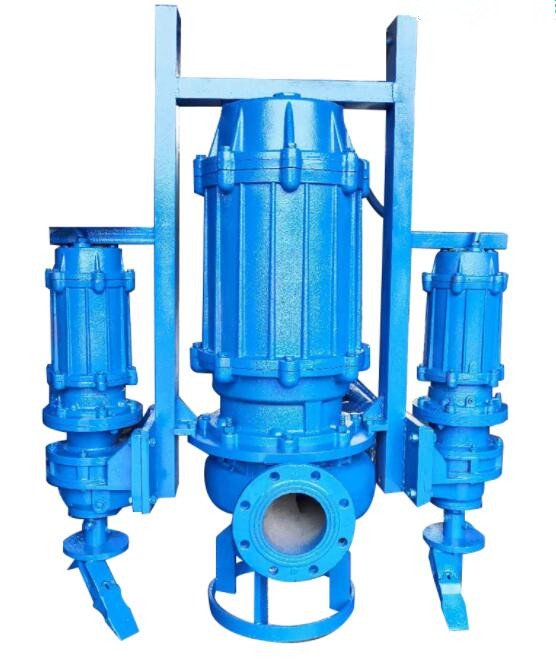

Submersible Sand Pump

Product overview

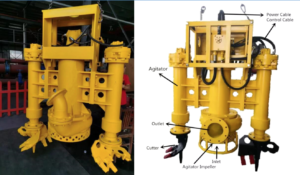

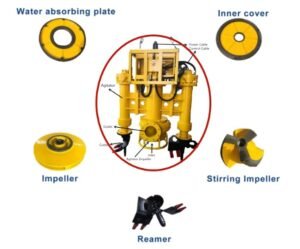

Because the pump inlet is installed with a stirring wheel, the mud at the bottom of the inlet can be stirred up and pumped out at work; Reduce the sedimentation of the sewage pond (or mud pond), ensuring the effective volume of the sewage pond.
Built-in electric pump, water flows through the motor sandwich, effectively prolonging the service life of the electric pump. This pump is especially suitable for underground coal mine water silo cleaning, belt conveyance roadway coal slime tank drainage and main shaft bottom drainage. It can realize automatic drainage of vertical shaft, inclined shaft and coal slime pool at the bottom of shaft.

Environmental conditions

  1. The power supply frequency is 50Hz, the voltage is three and 660V/1140V two voltage grades, the voltage fluctuation is allowed to 5%;
    2. Explosive places such as methane and coal dust are contained in the underground coal mine;
    3. The temperature of the conveying medium shall not exceed 40°C;
    4. PI value of conveying medium is within the range of 4~10:
    5. Contain solid particle medium, its concentration (weight concentration C) does not exceed: ash (slag) slurry and coal slurry 20%; Pulp and heavy medium 40%;
    6. Working environment temperature 0-40°C;
    7. The maximum solid particle in the medium is not greater than 50% of the minimum size of the cross section of the pump flow passage;
    8. Submersion depth of medium pump is not more than 5 meters.

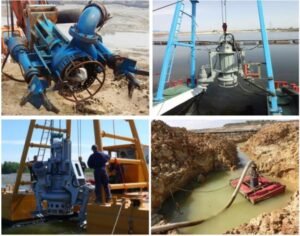

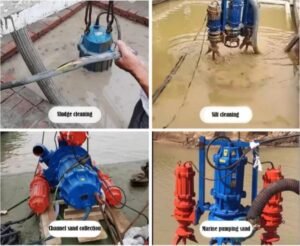

Main application range:
1. Drainage of underground working face containing methane or coal dust explosion risk;
2. Mine vertical shaft and inclined shaft construction drainage;
3. The slime pool of the conveyance roadway and the bottom hole drainage of the main shaft of the belt conveyor;

4.Deliver a solid particles of mud, larger pulp, coal slurry, sandstone;
5. Automatic drainage of water gushing in old pond and no man’s land;
6. Groundwater discharge containing coal dust, sediment and other small solid particles in the coal mine;
7. Cleaning silt of underground coal mine;
8. Disaster rescue and drainage;
9. Sewage disposal in urban environmental system:

10.Pumping silty sand or fine sand for seashore or port
11.. Power plant hydraulic ash removal;
12. Slurry transportation of metallurgical concentrator, coal slurry and heavy medium transportation of coal washing plant.





No. Model Size

(mm)

 Capacity Q

(m3/h)

 Head H

(m)

 Power P

(kw)

 Eff. η

(%)

 Speed n

(r/min)

 Max. particles

(mm)

 Weight

(kg)
1 50TJQ10-20-3 50 10 20 3 37 1460 8 110
2 50TJQ15-18-3 50 15 18 3 46 1460 8 110
3 50TJQ20-15-3 50 20 15 3 52 1460 8 110
4 50TJQ25-12-3 50 25 12 3 58 1460 8 110
5 65TJQ30-12-3 65 30 12 3 60 1460 8 110
6 65TJQ35-10-3 65 35 10 3 64 1460 8 110
7 65TJQ40-8-3 65 40 8 3 66 1460 8 110
8 50TJQ15-22-4 50 15 22 4 43 1460 10 113
9 50TJQ18-20-4 50 18 20 4 46 1460 10 113
10 50TJQ20-18-4 50 20 18 4 50 1460 10 113
11 50TJQ25-20-4 50 25 20 4 52 1460 10 113
12 65TJQ30-16-4 65 30 16 4 52 1460 10 113
13 65TJQ35-15-4 65 35 15 4 60 1460 10 113
14 65TJQ40-12-4 65 40 12 4 63 1460 10 113
15 65TJQ45-10-4 65 45 10 4 66 1460 10 113
16 80TJQ20-30-5.5 80 20 30 5.5 42 1460 13 205
17 80TJQ30-20-5.5 80 30 20 5.5 54 1460 13 205
18 80TJQ45-15-5.5 80 45 15 5.5 41 1460 13 205
19 80TJQ15-20-5.5 80 15 20 5.5 33 1460 13 205
20 80TJQ50-10-5.5 80 50 10 5.5 44 1460 13 205
21 80TJQ15-20-7.5 80 15 20 7.5 34 1460 13 210
22 80TJQ20-25-7.5 80 20 25 7.5 35 1460 13 210
23 80TJQ25-20-7.5 80 25 20 7.5 36 1460 13 210
24 80TJQ25-30-7.5 80 25 30 7.5 36 1460 13 210
25 80TJQ30-30-7.5 80 30 30 7.5 37 1460 13 210
26 80TJQ32-20-7.5 80 32 20 7.5 37 1460 13 210
27 80TJQ45-15-7.5 80 45 15 7.5 41 1460 13 210
28 100TJQ100-10-7.5 100 100 10 7.5 48 1460 21 220
29 80TJQ25-40-11 80 25 40 11 36 1460 13 300
30 80TJQ40-25-11 80 40 25 11 38 1460 13 240
31 80TJQ50-21-11 80 50 21 11 40 1460 13 240
32 80TJQ50-26-11 80 50 26 11 40 1460 13 240
33 80TJQ70-20-11 80 70 20 11 43 1460 13 240
34 100TJQ100-18-11 100 100 18 11 48 1460 21 240
35 80TJQ25-40-15 80 25 40 15 37 1460 13 330
36 80TJQ50-26-15 80 50 26 15 40 1460 13 260
37 80TJQ50-28-15 80 50 28 15 40 1460 13 260
38 100TJQ60-30-15 100 60 30 15 41 1460 13 265
39 80TJQ70-24-15 80 70 24 15 42 1460 13 260
40 100TJQ75-25-15 100 75 25 15 43 1460 13 260
41 100TJQ100-18-15 100 100 18 15 49 1460 21 270
42 100TJQ150-15-15 100 150 15 15 51 1460 21 270
43 150TJQ150-18-18.5 150 150 18 18.5 49 980 32 550
44 150TJQ200-12-18.5 150 200 12 18.5 53 980 45 550
45 150TJQ150-22-22 150 150 22 22 47 980 32 600
46 150TJQ200-15-22 150 200 15 22 50 980 45 600
47 150TJQ60-46-30 150 60 46 30 41 980 14 550
48 150TJQ70-38-30 150 70 38 30 42 980 21 710
49 150TJQ100-35-30 150 100 35 30 44 980 21 710
50 150TJQ108-30-30 150 108 30 30 44 980 21 710
51 150TJQ150-30-30 150 150 30 30 46 980 21 710
52 150TJQ150-35-30 150 150 35 30 46 980 21 710
53 150TJQ200-20-30 150 200 20 30 52 980 21 710
54 150TJQ240-20-30 150 240 20 30 55 980 21 710
55 200TJQ300-15-30 200 300 15 30 56 980 28 700
56 150TJQ100-50-37 150 100 50 37 44 980 21 850
57 200TJQ300-20-37 200 300 20 37 56 980 28 775
58 200TJQ400-15-37 200 400 15 37 58 980 28 775
59 150TJQ150-35-45 150 150 35 45 47 980 36 1000
60 150TJQ200-30-45 150 200 30 45 49 980 36 1110
61 200TJQ500-15-45 200 500 15 45 59 980 46 1100
62 150TJQ150-45-55 150 150 45 55 46 980 21 1140
63 150TJQ250-35-55 150 250 35 55 51 980 36 1140
64 250TJQ600-15-55 250 600 15 55 60 980 46 1220
65 150TJQ200-45-75 150 200 45 75 49 980 21 1540
66 150TJQ200-50-75 150 200 50 75 48 980 14 1550
67 200TJQ350-35-75 200 350 35 75 53 980 28 1550
68 200TJQ400-25-75 200 400 25 75 58 980 25 1550
69 200TJQ500-20-75 200 500 20 75 59 980 25 1550
70 150TJQ200-60-90 150 200 60 90 48 980 14 1550
71 200TJQ400-40-90 200 400 40 90 54 980 28 1550
72 200TJQ500-25-90 200 500 25 90 60 980 25 1550
73 200TJQ400-50-110 200 400 50 110 53 980 28 1970
74 250TJQ600-30-110 250 600 30 110 61 980 28 1970
75 300TJQ780-26-110 300 780 26 110 62 980 50 1970
76 300TJQ1000-18-110 300 1000 18 110 64 980 50 1970
77 200TJQ400-60-132 200 400 60 132 53 980 28 2000
78 200TJQ500-45-132 200 500 45 132 56 980 28 2000
79 200TJQ500-55-132 200 500 55 132 55 980 28 2000
80 300TJQ800-35-132 300 800 35 132 63 980 42 2000
81 300TJQ1000-22-132 300 1000 22 132 64 980 50 2000
82 200TJQ650-52-160 200 650 52 160 58 980 28 2650
83 300TJQ780-50-185 300 780 50 185 60 980 38 3330
84 250TJQ600-55-200 250 600 55 200 62 980 28 4080
85 300TJQ800-55-220 300 800 55 220 60 980 38 3400
86 350TJQ1250-35-220 350 1250 35 220 65 980 45 3400
87 350TJQ1750-30-250 350 1750 30 250 70 980 55 3750
88 350TJQ1500-35-250 350 1500 35 250 70 980 50 3750
89 350TJQ1750-40-315 350 1750 40 315 70 980 55 4200
90 400TJQ2000-35-315 400 2000 35 315 72 980 60 3800







Shijiazhuang Hedun Pump Manufacturing Co., Ltd.

Shijiazhuang Hedun Trading Co.,Ltd.

Email:info@topslurrypump.com    Web:www.topslurrypump.com

Add:Hi-tech New Industrial Destrict, Shijiazhuang, Hebei,China.

Tel&Whatsapp: +86-13831153172

Additional information

Type

Sludge pump
Application

dredging, Pumping sand, mining
Voltage

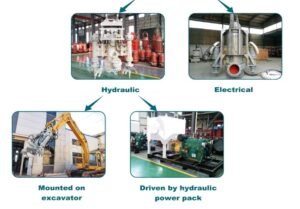

Hydraulic drive
Maximum Head

100m
Maximum Flow Rate

1200m³/h
